Dual-Drum Electro-Pneumatic Winch · CE certified

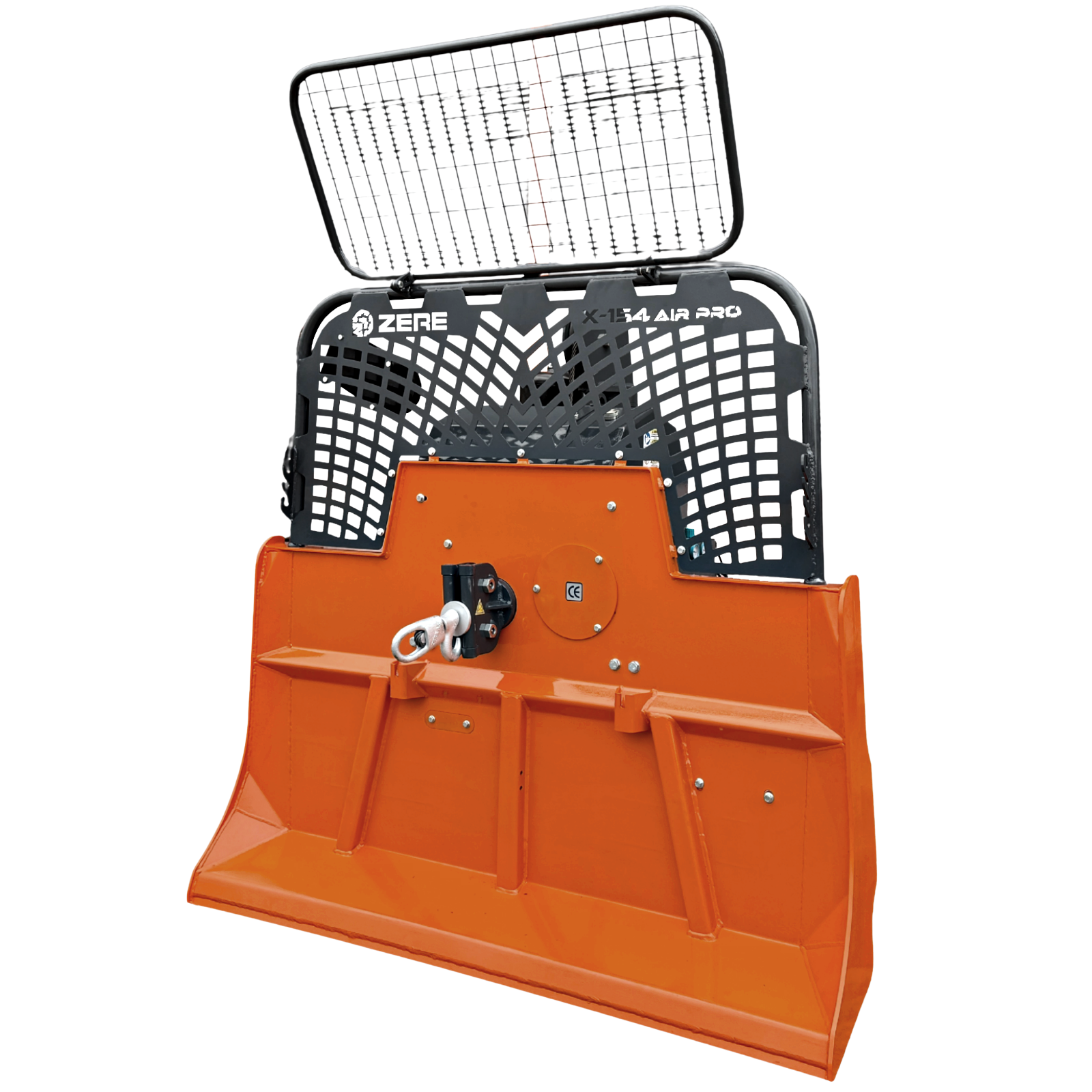

2X-154 AIR PRO
A synchronized dual-drum system engineered for high-tonnage extraction, longer reach and stable traction on steep terrain.
AIR PROTwo drums, 20 t pulling capacity per drum. The specification is shown as 2 × 20 t; it does not describe a single 40 t rope line.
Engineered by ZERE
Power, control
and durability.
Every ZERE machine is designed around real field demands: dependable power transfer, operator-focused control and a structure built for a long working life.
Two drums provide separate rope lines for positioning loads and planning the extraction route. Maximum Rope Length: 150 m / Ø 14 mm · Control: Electro-Pneumatic
Powered rope payout assists the operator when taking the rope from the drum to the load. Standard Rope Length: 120 m / Ø 14 mm · Maximum Rope Length: 150 m / Ø 14 mm
The attachment geometry supports the load at its gripping points during controlled movement. Weight without rope: 1300 kg
Key equipment
Equipment
Standard equipment
Optional equipment
Technical specifications
Built on
measurable facts.
Values may vary by configuration and field conditions. Contact the export team for final specification and tractor matching.
- Pulling Capacity
- 2 × 20 ton
- Brake Capacity
- 25 ton
- Average Winch Speed
- 0.5 m/s
- Standard Rope Length
- 120 m / Ø 14 mm
- Maximum Rope Length
- 150 m / Ø 14 mm
- Recommended Tractor Power
- >89 kW / >120 HP
- Control
- Electro-Pneumatic
- Clutch Plates
- 4
- Width
- 2140 mm
- Depth
- 1150 mm
- Height without / with guard
- 1770 / 2300 mm
- Weight without rope
- 1300 kg
- Hitch Category
- II, III
- Radio Remote Control
- Standard
- Rope Pay-Out System
- Standard
- Anti-Tip System
- Optional
Machine configuration
